Long service life with very low maintenance
-
Simple and easy to operate with low hand-arm vibration levels (HAV)
-
Gas-spring assisted raising and lowering in and out of work
-
Positive engagement blade clutch for optimin chop consistency
-
Low impact blade entry to 6cm cutting depth.
-
Infinately variable cut lengths from 1m to 5m
-
Blade widths from 30cm to 60cm (12" to 24")
-
First class customer support and 24 month warranty

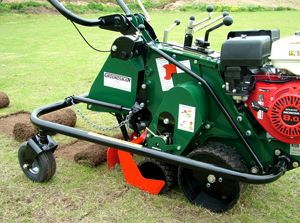

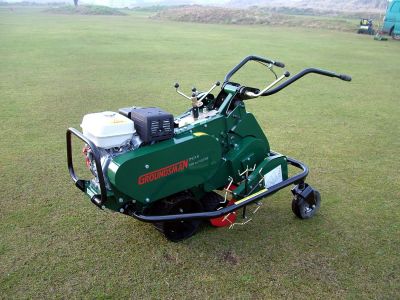

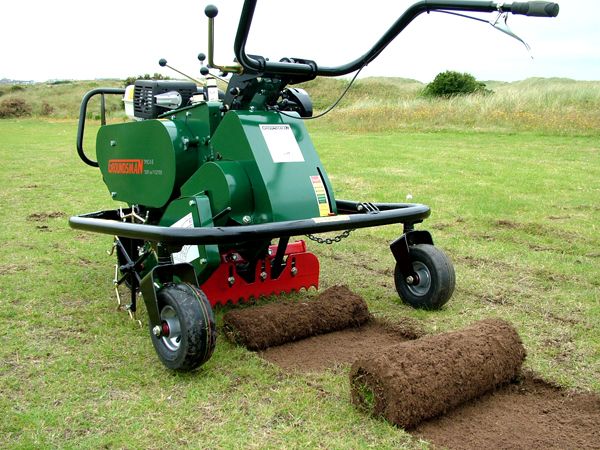

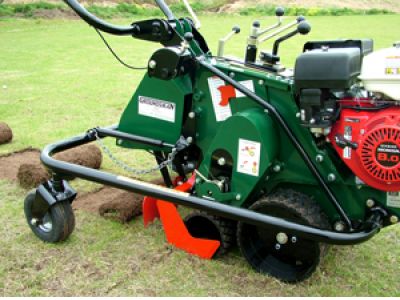

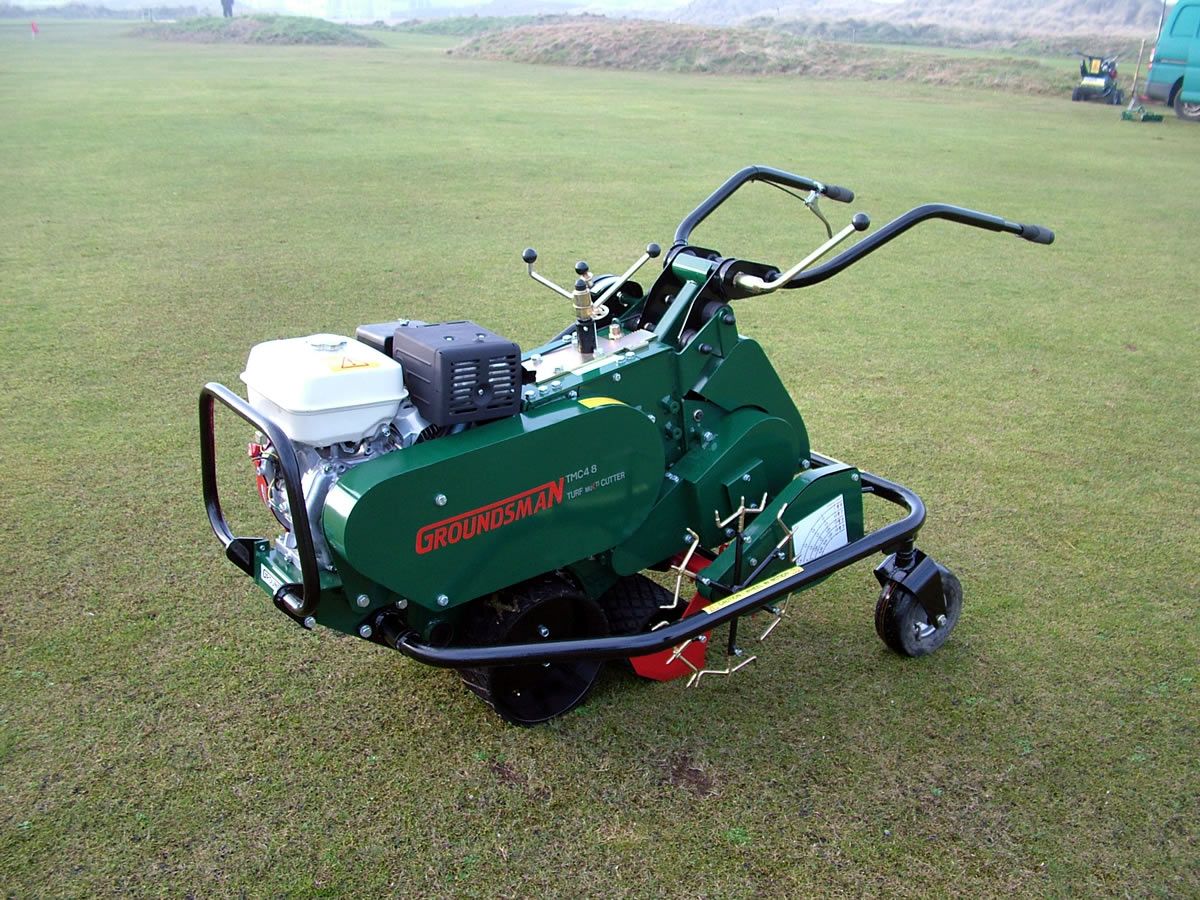

The Groundsman TC4GCO Guillotine chop-off attachment is available for fitting to the TMC48 Turf Sod Cutter. This attachment is simple in construction, compact and user friendly with low hand-arm vibration levels (HAV). Raising and lowering in and out of cut is gas-spring assisted with a caster-wheel safety frame stabilising and supporting the machine in the raised out of work position.
The Guillotine attachment bolts to the accessory mounting plate on the rear of the TMC48 machine and is chain driven from the cutter blade drive shaft on the Sod Cutter. The chop blade mechanism is simple and easily accessible, it uses sealed bearings throughout for durability with minimum maintenence.

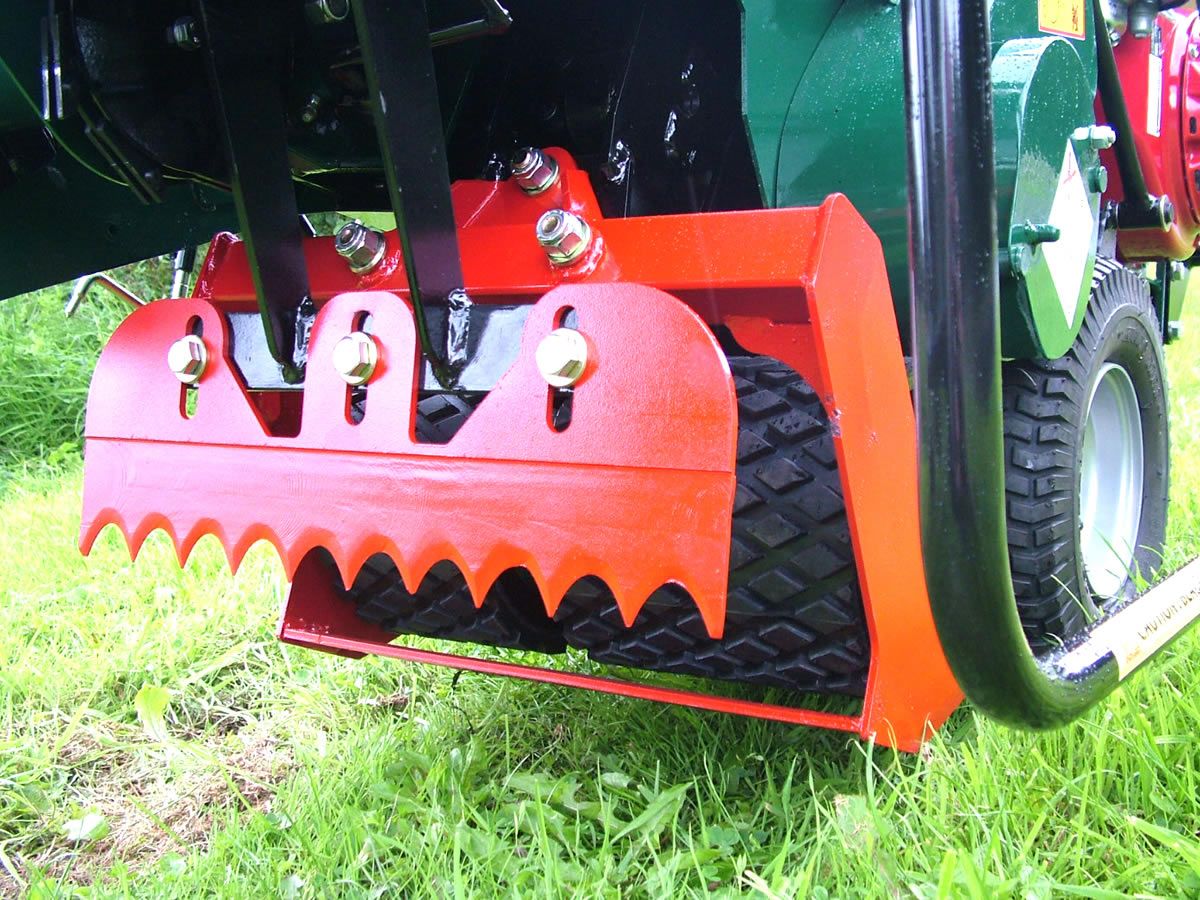

An adjustable metering wheel measures the forward travel activating a rolling key chop activation clutch giving an instant and positive engagement to the crank driven guillotine mechanism for maximum chop efficiency and accuracy. The cut lengths can be adjusted infinitely from one to five metres. The chop blade depth is adjustable to 6cm, the cutting edge is designed for maximum penetration with minimum impact.
The mechanism indicates when the chop blade is about to activate, this safety feature also serves to enable the operator to commence cutting when the chop blade is ready to activate to minimise wastage.
VIEW A SHORT VIDEO
*To view a short video of the TMC48 and TC4GCO Guillotine Attachment working please click on the YouTube icon above.
|
Blade Widths |
30, 35, 40, 45, 50 & 60cm (12" to 24") |
|
Cut Depth |
0 - 7cm (0 - 3") |
|
Blade Drive |
Chain driven rolling key clutch with sealed bearing crank and connecting rod |
|
Measuring System |
Variable diameter ground wheel and interchangable trigger pawls |
|
Raising and Lowering
Mechanism
|
Gas spring assisted raising and lowering with stabilising caster wheel frame
|
|
Wheels |
Two Caster Mounted Ball Bearing Rims with Smooth Pneumatic 9 x 3.5 - 4 Tyres. |
|
Weight |
TMC48 with TC4GCO fitted 226kg (497lbs) |
|
DIMENSIONS
Width
|
TMC48 with TC4GCO fitted
56cm (22") At Handles
53cm (21") At Safety Guard
|
|
Length |
110cm (43") (handles folded)
160cm (63") |
|
Height |
81cm (32") |
