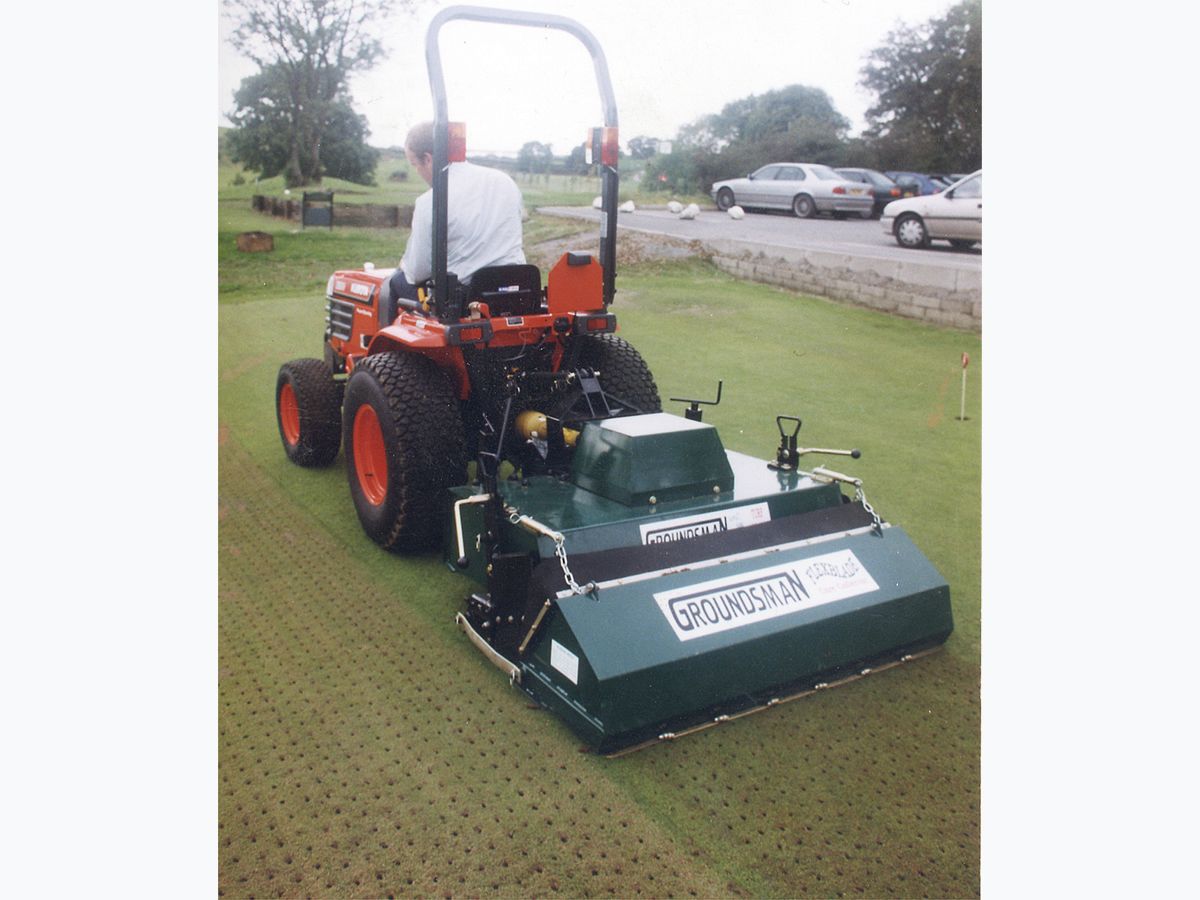

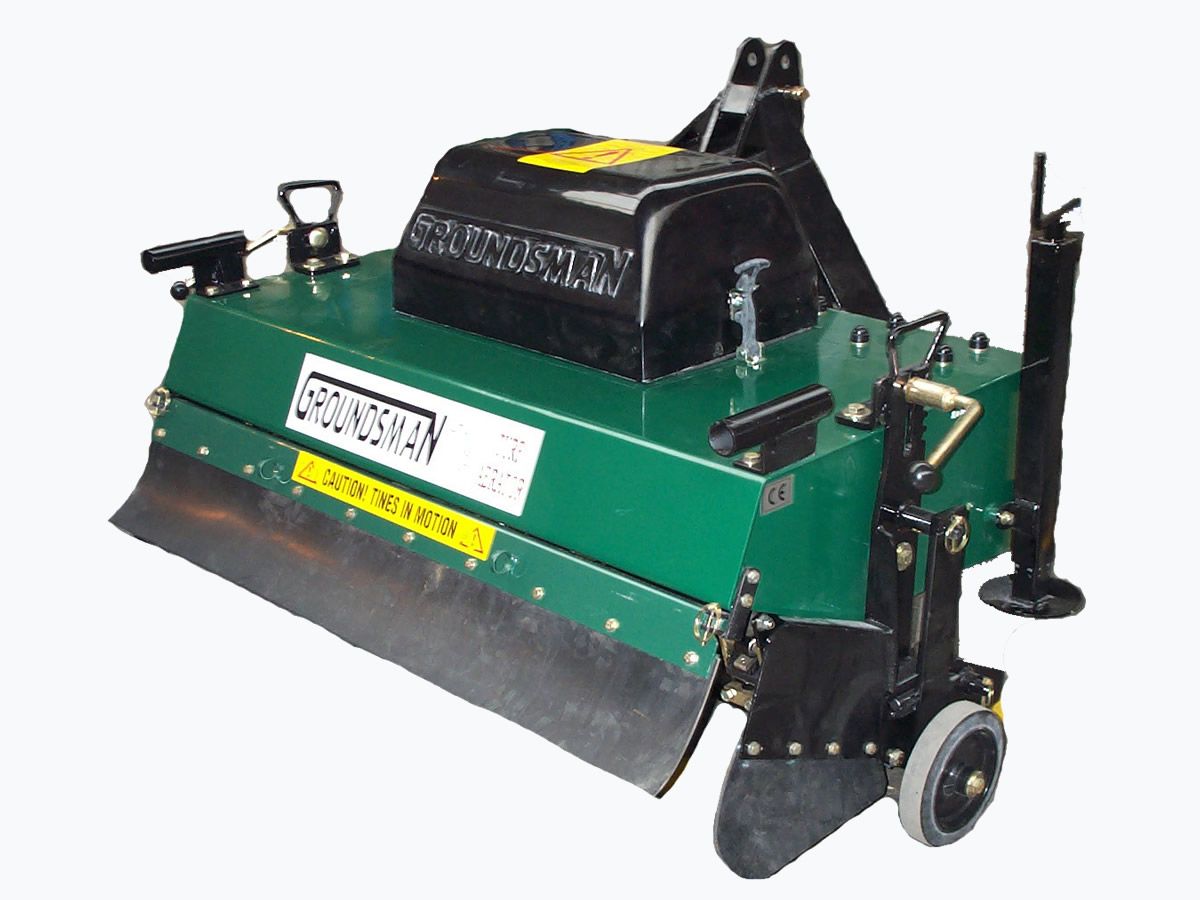

Tractor Mounted Turf Aerator 8120CTM

As with all the machines in the GROUNDSMAN surface aerator range, the 8120CTM is simple and compact , the aeration mechanism is fast, silent and this 1.2mtr can aerate up to 2400 sq.mtrs per hour. The large diameter modular crank shaft has sealed bearings throughout for durability and low maintenance. The crank moves the tines vertically and horizontally to gain maximum depth with minimum surface disruptiion. GROUNDSMAN'S elliptical plunge action aeration mechanism is modular and the 8120CTM uses two four arm modules each driven by a 5/8" Oring sealed chain for maximum life and minimum maintenance.

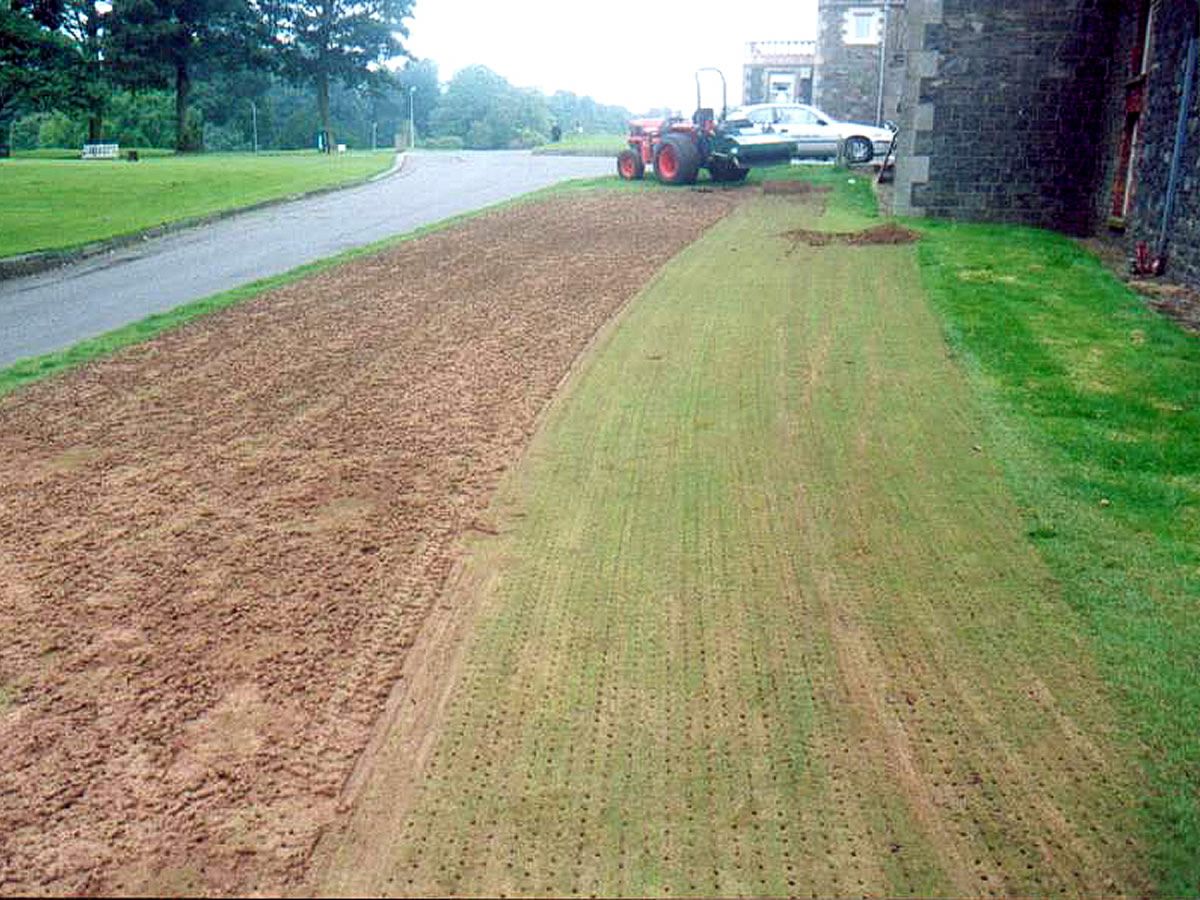

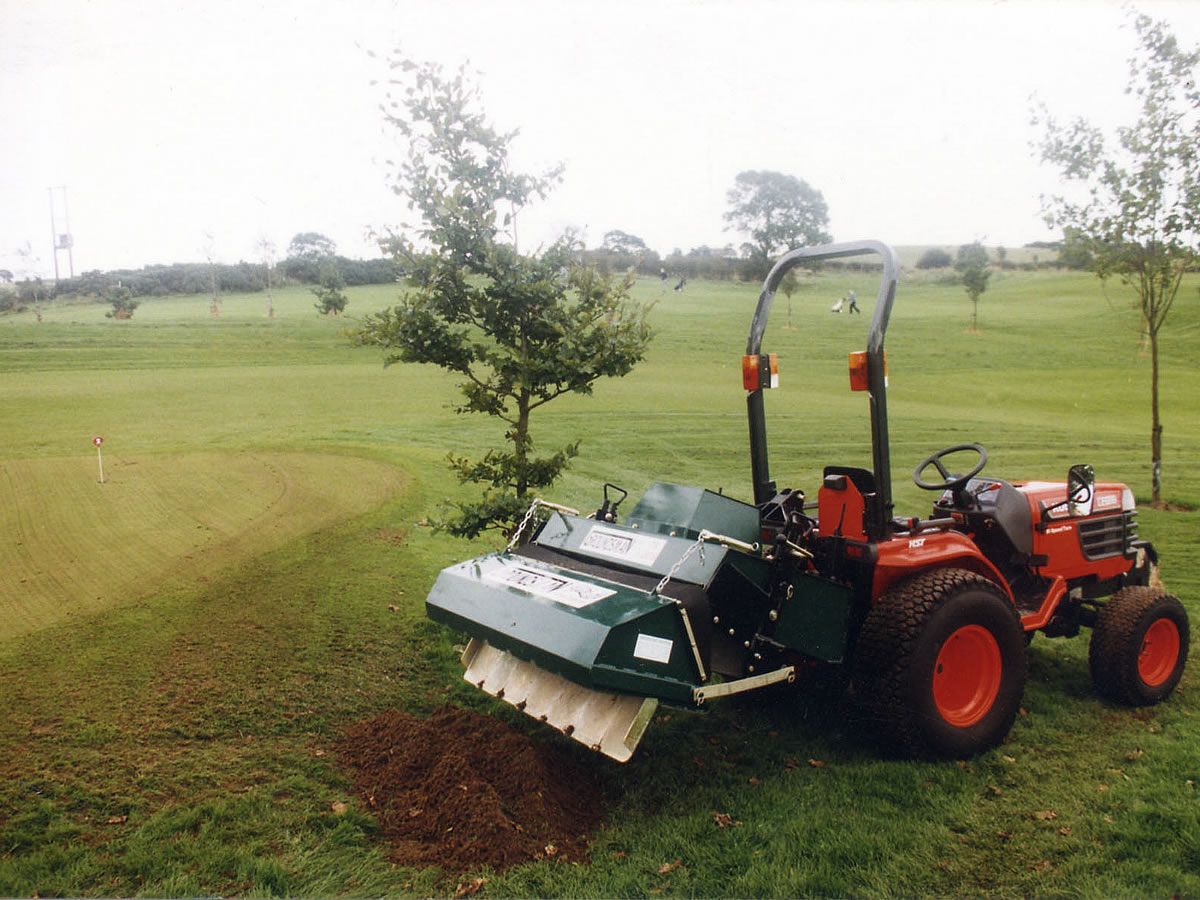

The machine has been designed to confine the soil cores within the swath for collection with GROUNDSMAN'S patented Flexblade Core Collector attachment. Core and collect in one pass. This amazing attachment has a series of plates like shovels linked together to follow the grass surface contours gathering 60% of the soil cores before they land on the ground and the rest are scooped cleanly off the surface. The cores are tipped in a pile when the machine is raised on the aprun. This implement can then draw the row of core pile into one collective pile leaving the surface ready for top dressing and keeping it in play. See ACCESSORIES.

The 8120CTM accepts the full range of GROUNDSMAN SC (spigot clamp) holders and a wide range of GROUNDSMAN tines. See TINES & HOLDERS. Contact us or download our Tines & Holders Catalogue which lists the full range of, Solid, Needle, Hollow, Chisel, Star and Cluster tines available from stock to enable you to carry out a year round programme of aeration, thatch removal and over-seeding preparation with a minimum of hassle.
